Pulsar Retail Loss Prevention Smart Light Bar
NS-50PSM

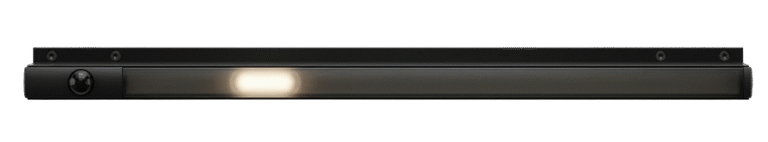

The Pulsar NS-50PSM is a unique, low-profile motion LED array designed to dramatically increase engagement with digital signage and Public View Monitors (PVMs). Universal and highly adaptable, the system mounts directly to any standard display—instantly triggering a dynamic, side-to-side white light tracing effect the moment a viewer approaches to naturally draw their eyes straight to your on-screen message.
Key Features & Smart Integrations
Intelligent Motion Tracing
- Proximity Activation: Features a localised digital PIR sensor that detects human movement at a precise 4m to 5m range directly in front of the display.
- Natural Engagement: The motion sensor triggers a smooth, side-to-side white LED light tracing effect. This dynamic movement naturally commands the attention of passing foot traffic without needing annoying flashing audio or aggressive strobe patterns.
USB Power
- Display Powered: Draws low-voltage power directly from the monitor’s existing USB 2.0 port (5V DC / 3W), completely eliminating the need for bulky external power bricks, wall plugs, or complex electrical wiring.
- Eco-Efficient Standby: Operates on an ultra-low maintenance, solid-state architecture that consumes minimal energy, only activating the LED array when human motion is present.
Universal VESA Mounting
- Clean Hidden Profile: Sits neatly and discreetly directly above or below the screen, mounting seamlessly to the rear of the monitor framework.
- Broad Compatibility: Includes two heavy-duty 350mm VESA mounting bars, making it fully compatible out of the box with an expansive range of commercial displays and televisions from 28" to 65".
Technical Specifications
- Motion Tracking Array: Proximity digital PIR sensor field (4m–5m detection range)
- Sensor Coverage: Specialised 60° horizontal detection zone optimised for narrow walkway foot traffic
- Visual Effect: High-visibility white LED side-to-side tracing pattern
- Chassis Composition: Premium architectural black aluminum alloy paired with a rugged ABS core
- Physical Profile: Ultra-slender linear dimensions (450mm W x 20mm H x 40mm D)
- Power Input Requirements: Native low-voltage 5V DC operation via USB 2.0
- Maximum Power Consumption: Ultra-efficient 3W maximum draw during motion activation
- Hardware Interface: Integrated standard USB connector with an 800mm tail cable
- Display Integration: Includes 2x 350mm rigid VESA extension mounting bars
- Display Compatibility Range: Engineered for standard flat-panel monitors and TVs from 28" to 65"
- Lifecycle Rating: Highly durable solid-state build requiring zero bulb changes or field maintenance
- Motion Tracking Array: Proximity digital PIR sensor field (4m–5m detection range)
- Sensor Coverage: Specialised 60° horizontal detection zone optimised for narrow walkway foot traffic
- Visual Effect: High-visibility white LED side-to-side tracing pattern
- Chassis Composition: Premium architectural black aluminum alloy paired with a rugged ABS core
- Physical Profile: Ultra-slender linear dimensions (450mm W x 20mm H x 40mm D)
- Power Input Requirements: Native low-voltage 5V DC operation via USB 2.0
- Maximum Power Consumption: Ultra-efficient 3W maximum draw during motion activation
- Hardware Interface: Integrated standard USB connector with an 800mm tail cable
- Display Integration: Includes 2x 350mm rigid VESA extension mounting bars
- Display Compatibility Range: Engineered for standard flat-panel monitors and TVs from 28" to 65"
- Lifecycle Rating: Highly durable solid-state build requiring zero bulb changes or field maintenance
